How to Adjust Fence Square to Table on Laguna 1412 Bandsaw

on

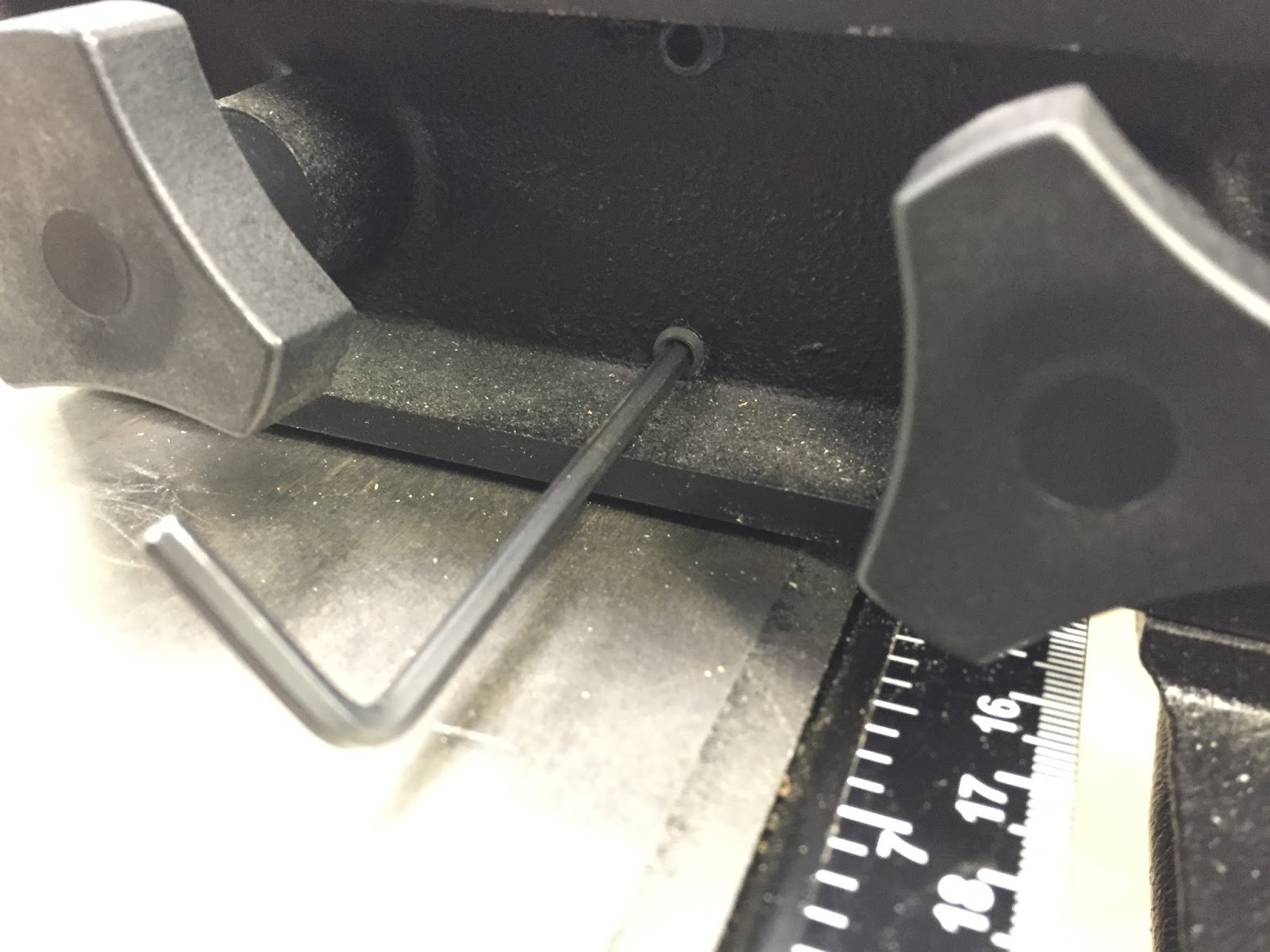

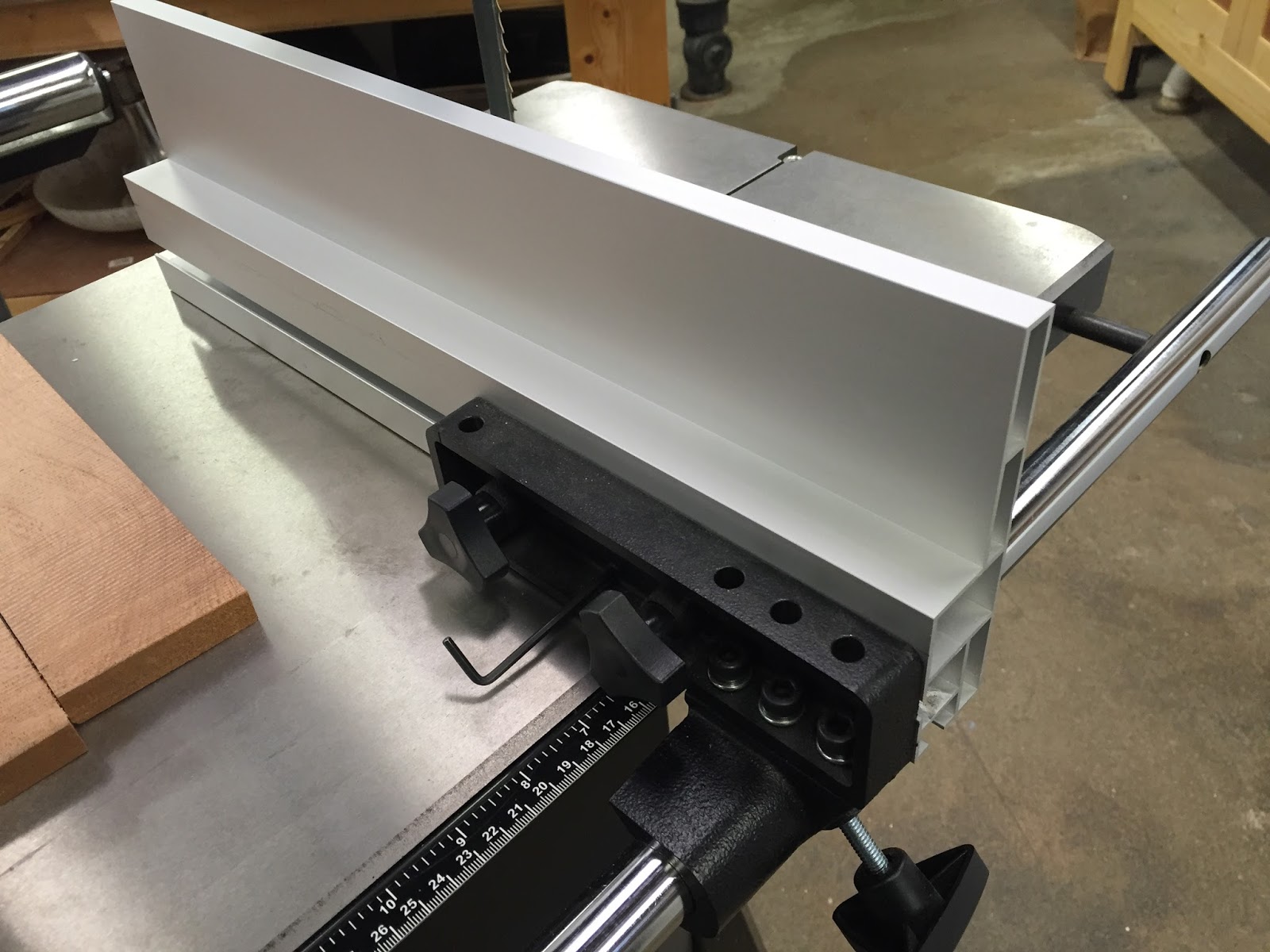

Others have commented on the need to shim the fence body to make the fence square to the table.  This isn't necessary as there are screws on the body that allow for this adjustment.  Unfortunately, nothing about this is mentioned in the users' manual.  Regardless, this is now to do it: First, adjust table square to blade. Next, determine whether the fence is square to table.  If not, loosen star knobs holding fence to body and tighten appropriate set screw (upper or lower) on backside of body so it protrudes slightly beyond face of body.  Once the knobs are resecured, the protruding screw will push the fence out in the appropriate direction.

Comments

  1. Matthew FlanneryJanuary 22, 2018 at 11:03 AM

    Thanks!

    ReplyDelete
  2. JohnApril 20, 2018 at 10:53 AM

    I've looked everywhere for this information. User manual, Youtube, company website.

    I know they've had troubles with customer service. But maybe they'd get fewer calls and complaints if they just wrote a decent manual.

    And FYI, there is nothing in the manual about squaring the blade to the table either, but that was easy to figure out.
